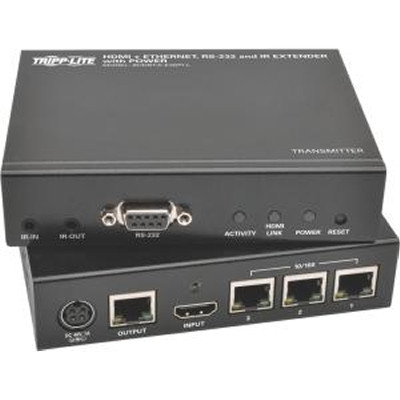

TRIPP LITE BHDBT-K-E3SPI-L - Tripp Lite HDBaseT CAT5/6/6A Extender Kit HDMI Power/Serial/IR/LAN

$619.69 $427.37 (You save $192.32)
SKU:
BHDBT-K-E3SPI-L
Condition:
New
Availability:
Out of Stock

* Prices and ETA can be changed anytime without any prior notice.
** Backorders are subject to cancellation without any prior notice.

The BHDBT-K-E3SPI-L HDBaseT HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video RS-232 serial and IR remote control signals up to 328 feet over a single Cat5e/6/6a cable including an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) @ 24/30Hz signal. In addition to HDMI RS-232 and IR signals this extender kit features built-in PoE technology which powers the receiver over Cat5e/6/6a cable eliminating the need for an external power source. Three built-in 10/100 Ethernet ports on both the transmitter and receiver allow connected devices such as a Blu-rayÖ player cable/satellite box and HDMI television to communicate with each other and access online content via LAN.You can also control RS-232 serial devices such as touchscreen displays or scanners at baud rates up to 115 Kbps. The two-way IR remote control feature(@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports(ideal for use with Tripp Lite's P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone ensuring an intact signal. The plug-and-play BHDBT-K-E3SPI-L supports 7.1-channel surround sound DTS-HD and Dolby TrueHD audio as well as 3D video EDID and HDCP. Attach the transmitter and receiver units to a wall rack or pole with the included mounting hardware.
General Information
Product NameHDBaseT CAT5/6/6A Extender Kit HDMI Power/Serial/IR/LAN
Product ModelBHDBT-K-E3SPI-L
Product TypeVideo Extender Transmitter/Receiver
Technical Information
Connectivity TechnologyWired
Number of Input Devices Supported1
Number of Output Devices Supported1
Maximum Operating Distance328 ft
Interfaces/Ports
Network (RJ-45)Yes
HDMI InYes
HDMI OutYes
Serial PortYes
Number of Network (RJ-45) Ports8
Number of HDMI Inputs1
Number of HDMI Outputs1
Media & Performance
Media Type SupportedTwisted Pair
Twisted Pair Cable StandardCategory 6a
Video
Graphics Modes4K
Maximum Video Resolution3840 x 2160
Physical Characteristics
Form FactorRack-mountable

Wall Mountable

Pole-mountable

Warranty
Limited Warranty1 Year
Miscellaneous
Environmentally FriendlyYes
Environmental CertificationRoHS
Stock Details
ManufacturerTripp Lite
Manuf Part#BHDBT-K-E3SPI-L
Price$365.08
AvailabilityIn Stock
