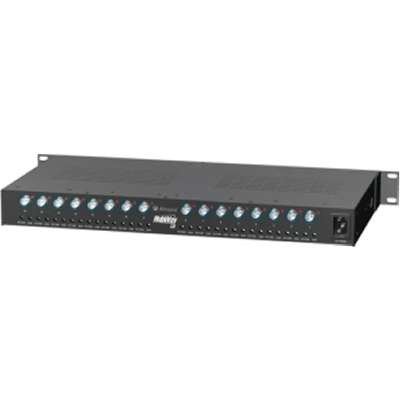

Altronix HUBWAYLD162DI - 16 Channel Active UTP Transceiver Hub Wi

$2,398.65 $1,654.24 (You save $744.41)
SKU:
HUBWAYLD162DI
Condition:
New
Availability:
Out of Stock

* Prices and ETA can be changed anytime without any prior notice.
** Backorders are subject to cancellation without any prior notice.

Altronix HubWayLD162Di Active UTP Transceiver Hub w/Integral Isolated Camera Power transmits UTP video RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 16 camera channels in a space saving 1U EIA 19" rack mount chassis which may be rack wall or shelf mounted. Video transmission range is up to 3000 ft. max. per channel. Units are compatible with AC fixed or PTZ cameras when utilizing Altronix HubWayAv Video Balun/Combiners. In addition the unit features individually selectable 24VAC or 28VAC PTC protected outputs with surge suppression. An optional HubSat4D Passive UTP Transceiver Hub with Integral Isolated Camera Power can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable back to the HubWayLD16Di. In addition the HubSat4D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs.
General Information
Product Name16 Channel Active UTP Transceiver Hub Wi
Product LineHubWay
Product ModelHUBWAYLD162DI
Product TypeVideo Extender Transmitter/Receiver
Technical Information
Connectivity TechnologyWired
Number of Input Devices Supported16
Number of Output Devices Supported16
Maximum Operating Distance3000 ft
Interfaces/Ports
Network (RJ-45)Yes
Serial PortYes
Number of Network (RJ-45) Ports16
Media & Performance
Media Type SupportedTwisted Pair
Twisted Pair Cable StandardCategory 5
Physical Characteristics
Height1.6"
Width19.1"
Depth8.5"
Form FactorRack-mountable

Wall Mountable

Warranty
Limited WarrantyLifetime
Miscellaneous
Environmentally FriendlyYes
Environmental CertificationRoHS
Other Information
Product FamilyHubWay
Input Voltage115 V AC

230 V AC

Stock Details
ManufacturerAltronix
Manuf Part#HUBWAYLD162DI
Price$1366.14
AvailabilitySpecial Order
Lifetime
