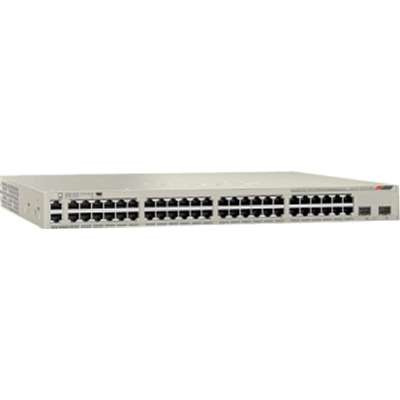

Cisco Systems C6800IA-48FPD - Catalyst 6800 Instant Access PoE+ Switch
$16,131.02
- SKU:
- C6800IA-48FPD
- Condition:
- New
- Availability:
- Out of Stock
The Cisco Catalyst 6800ia solution offers network administrators the ability to look at buildings in a campus network as a single switch. The entire building can be viewed as a single management entity. The Cisco Catalyst 6800ia solution is managed by the parent Cisco Catalyst 6500/6800 switch. The Cisco Catalyst 6800ia solution offers feature consistency across the access and distribution layers of the campus Ethernet network. The Cisco Catalyst 6800ia is an extension of the Cisco Catalyst 6500/6800 parent switch. The Cisco Catalyst 6800ia solution is very resilient with its support of multichassis EtherChannel and stacking. The Cisco Catalyst 6800ia solution does not use Spanning Tree Protocol in the links between the Cisco Catalyst 6800ia switch and the Cisco Catalyst 6500/6800 parent switch. The Cisco Catalyst 6800ia solution supports Virtual Switching System Cisco Catalyst 6800ia switches do not perform any local packet forwarding. All traffic originating from host ports (downlink ports) of a Cisco Catalyst 6800ia switch will be sent to an Instant Access parent which makes all the switching and forwarding decisions for the traffic to be forwarded to the destination.
General Information | |
Product Name | Catalyst 6800 Instant Access PoE+ Switch |
Product Line | Catalyst |
Product Series | 6800ia |
Product Model | C6800IA-48FPD |
Product Type | Ethernet Switch |
Interfaces/Ports | |
Total Number of Network Ports | 48 |
Uplink Port | Yes |
Modular | No |
Port / Expansion Slot Details | 48 x Gigabit Ethernet Network 2 x 10 Gigabit Ethernet Uplink |
I/O Expansions | |
Number of Total Expansion Slots | 2 |
Expansion Slot Type | SFP+ |
Number of SFP+ Slots | 2 |
Media & Performance | |
Media Type Supported | Twisted Pair |
Ethernet Technology | Gigabit Ethernet 10 Gigabit Ethernet |
Network Technology | 10/100/1000Base-T |
Network & Communication | |
Layer Supported | 2 |
Power Description | |
Power Source | Power Supply |
Redundant Power Supply Supported | Yes |
Management & Protocols | |
Manageable | Yes |
Physical Characteristics | |
Form Factor | Rack-mountable |
Height | 1.8" |
Width | 17.5" |
Depth | 14.5" |
Other Information | |
Product Family | Catalyst 6800ia |
PoE (RJ-45) Port | No |
Twisted Pair Cable Standard | Category 5 |
Token Ring Port | No |
LRE Port | No |
Management Port | Yes |
Number of PoE (RJ-45) Ports | 24 |
Number of PoE+ (RJ-45) Ports | 24 |
Bypass | No |
Memory Technology | DRAM |
Flash Memory | 128 MB |
Standard Memory | 512 MB |
Stock Details | |
Manufacturer | Cisco Systems |
Manuf Part# | C6800IA-48FPD |
Price | $14078.58 |
Availability | Special Order |
