| General Information | |

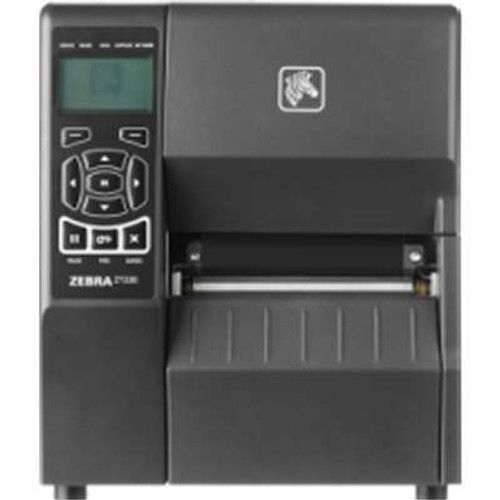

| Product Name | ZT230 TT 203DPI Ser USB Parallel Liner Take Up Peel |
| Manufacturer Part Number | ZT23042-T31100FZ |
| Product Series | ZT200 |
| Product Model | ZT230 |
| Product Type | Direct Thermal/Thermal Transfer Printer |
| Technical Information | |
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 6 in/s |
| Maximum Print Resolution | 203 dpi |
| Maximum Print Width | 4.09" |
| Peel Facility | Yes |
| Interfaces/Ports | |
| Parallel Port | Yes |
| Serial Port | Yes |
| USB | Yes |
| Display & Graphics | |
| Display Screen Type | LCD |
| Media Types & Handling | |
| Media Thickness | 10 mil |
| Maximum Label Width | 4.50" |
| Maximum Label Length | 39" |
| Memory | |
| Standard Memory | 128 MB |
| Power Description | |
| Input Voltage | 110 V AC 220 V AC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 10.9" |
| Width | 9.5" |
| Depth | 17" |
| Warranty | |
| Limited Warranty | 1 Year |
| Miscellaneous | |
| Platform Supported | PC |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Other Information | |
| Product Family | ZT200 |
| Power Source | AC Supply |
| Media Sensor | Transmissive Media Sensor Reflective Media Sensor |
| Label Core Size | 3" |
| Ribbon Core Size | 1" |
| Memory Technology | DRAM |
| Language Emulation | ZPL |
| Flash Memory | 128 MB |
| Maximum Roll Diameter | 8" |
| Stock Details | |
| Manufacturer | Zebra |
| Manuf Part# | ZT23042-T31100FZ |
| Availability | In Stock |
1 Year
