| General Information | |

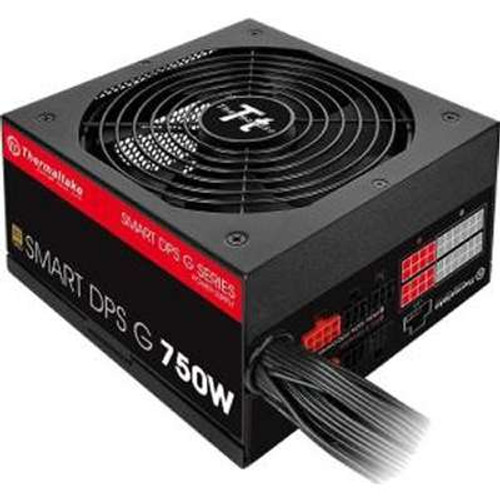

| Product Name | 750W 80 Plus PSU |
| Manufacturer Part Number | SP-750P |
| Product Line | Smart |
| Product Model | SP-750AH2NCB |
| Product Type | Power Supply |
| Technical Information | |
| Efficiency | 88% |
| Number of Fans | 1 |
| Power Description | |
| Input Voltage | 110 V AC 220 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC @ 25 A 5 V DC @ 25 A 12 V DC @ 62 A -12 V DC @ 800 mA 5 V DC @ 3 A |
| Output Power | 750 W |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 3.4" |
| Width | 5.9" |
| Depth | 6.3" |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Other Information | |
| Product Family | Smart |
| Specification Compliance | ATX12V/EPS12V |
| Power Factor Correction (PFC) | Active |
| Plug / Connector | On/Off Switch |
| Input Voltage Type | AC |
| Color | Black |
| Receptacles | 1 x 24-pin ATX Motherboard 1 x 4+4pin ATX12V Motherboard 4 x 6+2pin PCI-E 8 x Serial ATA 4 x 4-pin LP4 Peripheral Device 1 x 4-pin SP4 Floppy Drive |
| Input Voltage Range | 100 V AC to 240 V AC |
| MTBF | 100000 Hour |
| Protection Type | Over Voltage Under Voltage Over Current Over Power Short Circuit |
| Stock Details | |
| Manufacturer | Thermaltake |
| Manuf Part# | SP-750P |
| Price | $73.13 |
| Availability | Special Order |
