| General Information | |

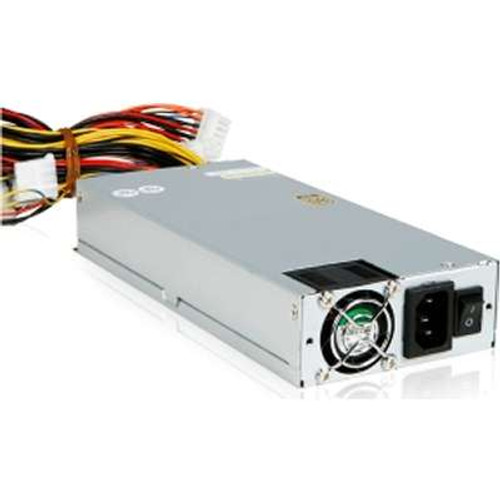

| Product Name | iStarUSA Power Supply Is-1U50PD8 1U 500W 80PLUS Apfc Power Supply Retail |
| Product Model | IS-1U50PD8 |
| Product Type | Power Supply |
| Technical Information | |
| Efficiency | 82% |
| Number of Fans | 1 |
| Power Description | |
| Input Voltage | 110 V AC 220 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC @ 24 A 5 V DC @ 24 A 12 V DC @ 41 A -12 V DC @ 800 mA 5 V DC @ 3 A |
| Output Power | 500 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.6" |
| Width | 3.9" |
| Depth | 7.9" |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| Other Information | |
| Specification Compliance | ATX12V/EPS12V |
| Power Factor Correction (PFC) | Active |
| Input Voltage Type | AC |
| Receptacles | 1 x 24-pin ATX Motherboard 1 x 4-pin ATX12V Motherboard 1 x 8-pin EPS12V Motherboard 4 x 4-pin LP4 Peripheral Device 1 x 4-pin SP4 Floppy Drive 2 x Serial ATA |
| Input Voltage Range | 90 V AC to 132 V AC 180 V AC to 264 V AC |
| Input Current | 7.40 A @ 110V 3.70 A @ 220V |
| MTBF | 100000 Hour |
| Protection Type | Over Current Over Voltage Short Circuit |
| Stock Details | |
| Manufacturer | iStarUSA |
| Manuf Part# | IS-1U50PD8 |
| Price | $126.56 |
| Availability | Special Order |
5 Year
