| General Information | |

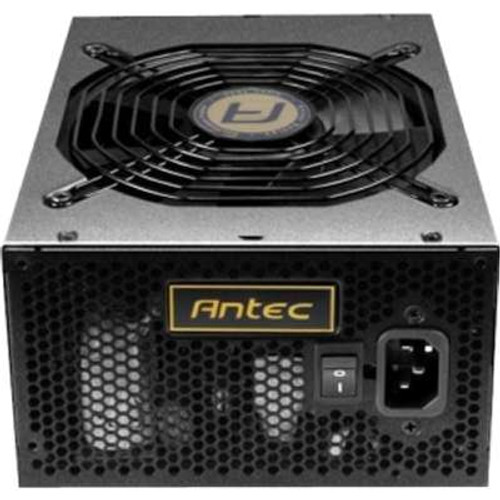

| Product Name | 850W 80 Plus Platinum PSU |
| Manufacturer Part Number | HCP850PLATINUM |
| Product Line | High Current Pro |
| Product Series | Platinum |
| Product Model | HCP-850 Platinum |
| Product Type | Power Supply |
| Technical Information | |
| Efficiency | 94% |
| Number of Fans | 1 |
| Modular | Yes |
| ATI CrossFire Supported | Yes |
| NVIDIA SLI Supported | Yes |
| Power Description | |
| Input Voltage | 110 V AC 220 V AC |
| Number of +12V Rails | 4 |
| Output Voltage | 3.3 V DC @ 25 A 5 V DC @ 25 A 12 V DC @ 40 A -12 V DC @ 500 mA 5 V @ 3 A |
| Output Power | 850 W |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 3.4" |
| Width | 5.9" |
| Depth | 7.5" |
| Warranty | |
| Limited Warranty | 7 Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Other Information | |
| Product Family | High Current Pro Platinum |
| Specification Compliance | ATX12V/EPS12V |
| Power Factor Correction (PFC) | Active |
| Plug / Connector | OC Link |
| Input Voltage Type | AC |
| Color | Black |
| Receptacles | 1 x 24-pin ATX Motherboard 1 x 4+4pin ATX12V Motherboard 1 x 8-pin EPS12V Motherboard 6 x 6+2pin PCI-E 6 x 4-pin LP4 Peripheral Device 9 x Serial ATA 1 x 4-pin SP4 Floppy Drive |
| Input Voltage Range | 110 V AC to 240 V AC |
| Input Current | 12 A @ 110V 5.50 A @ 220V |
| Length | 7.5" |
| Protection Type | Over Voltage Under Voltage Short Circuit Over Current Over Power Brownout Surge Inrush Current Over Temperature No Load |
| Stock Details | |
| Manufacturer | Antec |
| Manuf Part# | HCP850PLATINUM |
| Price | $211.93 |
| Availability | In Stock |
